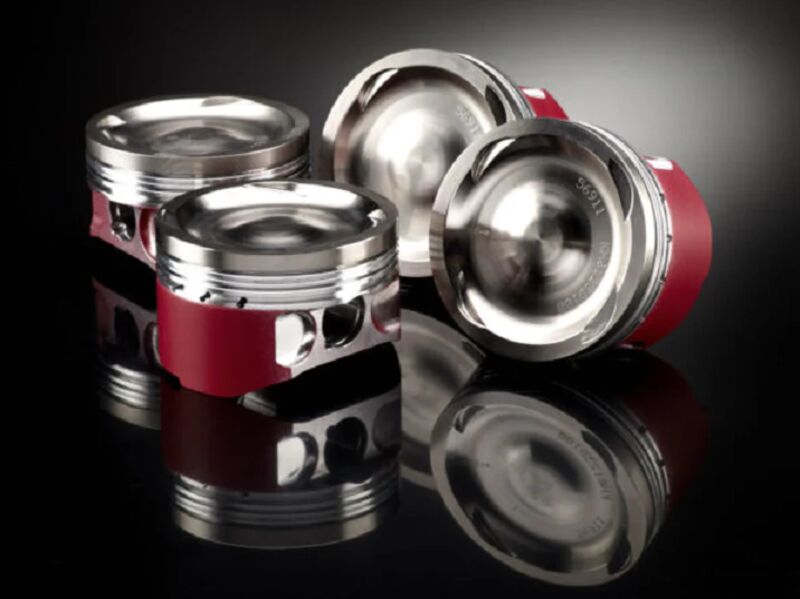

WOSSNER 07K DAZA 2.5L 82.50-83MM FORGED PISTON KIT

82.50 MM or 83MM SET OF 5 SEE OPTION TAB
10:1 COMP RATIO MUST USE TTRS DAZA HEADGASKET
22 MM Pins
INCLUDES Ring set and clips
Fits VW 07K AUDI DAZA
HARDCOAT ANODIZE ON PISTON
Wössner forged pistons are engineered for high performance and reliability, using premium materials and manufacturing
methods. In some applications we have added a hardcoat anodize treatment to the piston to enhance the pistons abilities
to manage heat and wear. This technical bulletin is provided to help you understand how this treatment is providing
enhanced performance
Hardcoat anodize is applied to the piston during the manufacturing process. This is near the last step before the piston is
finish turned, ring pins installed, and wrist pin hole is honed
The treatment is a conversion of the base aluminum material and protrudes into the base material as well as slightly above
the surface. This conversion is known as an “anodic oxide layer”, and forms a hardened surface that will improve:
• Piston crown hardness, thermal insulation and heat dissipation capability
• Ring groove hardness, abrasion resistance, durability, and oil retention, while preventing ring micro-welding
Why is this important to the piston:
• In some applications, the piston crown requires additional protection from thermal distress, such as engines with
forced induction, heavy / constant thermal loads, or varied load environments
• The treatment will enhance the piston’s ability to absorb operating temperatures, or even sudden increases of
temperature due to the state of tune, fuel quality, or load increases that are not immediately compensated for
• Ring groove wear is improved due to the treatments ability to handle additional sliding wear as compared to non-
treated surfaces
• Ring micro-welding is the affect of aluminum material transferring from the piston ring groove to the ring under
high stress environments, causing the ring to no longer move freely and seal combustion. Mico-welding is
eliminated when the ring groove is treated with hardcoat anodize, providing an environment where the ring can
operate properly under extreme conditions (REF SAE 960745)

Scroll to view product options.

Part #	Item				Size	Price
K9595D050	WOSSNER 07K DAZA 2.5L 83MM FORGED PISTON KIT				83MM Set of 5	$959.00	Add to Cart
K9595DA	WOSSNER 07K DAZA 2.5L 82.50-83MM FORGED PISTON KIT				82.50MM Set of 5	$959.00	Add to Cart

Scroll to view product options.

Fits These Applications:

Year	Make	Model	Engine	Transmission	Drive
2017 - 2019	Audi	RS3 MK3 8V	2.5T	DSG	Quattro
2016 - 2019	Audi	TTRS MK3 8S	2.5T	DSG	Quattro
2013	Volkswagen	GOLF/GTI/TDI MK6	2.5 20V I-5 07K
2012	Volkswagen	GOLF/GTI/TDI MK6	2.5 20V I-5 07K
2011 - 2014	Volkswagen	GOLF/GTI/TDI MK6	2.5 20V I-5 07K
2011 - 2012	Volkswagen	Jetta MK6	2.5 20V I-5 07K
2010	Volkswagen	GOLF/GTI/TDI MK6	2.5 20V I-5 07K
2010	Volkswagen	JETTA MK5	2.5 20V I-5 07K
2009	Volkswagen	GOLF JETTA RABBIT MK5	2.5 20V I-5 07K
2007	Volkswagen	GOLF JETTA RABBIT MK5	2.5 20V I-5 07K
2006	Volkswagen	GOLF JETTA RABBIT MK5	2.5 20V I-5 07K
2005 - 2008	Volkswagen	GOLF JETTA RABBIT MK5	2.5 20V I-5 07K
