Garrett G2260S PowerMax Direct Fit Turbo VW AUDI MQB MK7

• Garrett® PowerMAX Stage 1 - 485HP, MK7 MQB 2014 - 2018 VW Audi 2.0T TSI EA888 Gen 3
• Direct-Fit Stage 1 Upgrade
• Audi A3, S3, TT, TTS
• VW Golf Base, AllTrack, GTI and R
• Complete assembly with calibrated electric actuator,DV and ancillary components for OE fitment
• 485 flywheel horsepower capability (on-vehicle results)
• +17% flow compared to IS38 turbo (stock Golf R, TTS and S3)
• GTX Gen II compressor wheel aero
• Mar-M alloy turbine wheel material rated for up to 1050C
• Stainless steel turbine housing rated for up to 1050C
• Latest generation of journal bearing rotor group
• 360-degree thrust bearing – reinforced for application
• Maximum allowable turbocharger speed is 185krpm (Stage 1)
• Fully machined speed sensor port - Speed Sensor Kit sold separately (See Related Below) United Motorsport software for Speed wheel control and Live E85 Additional hardware required

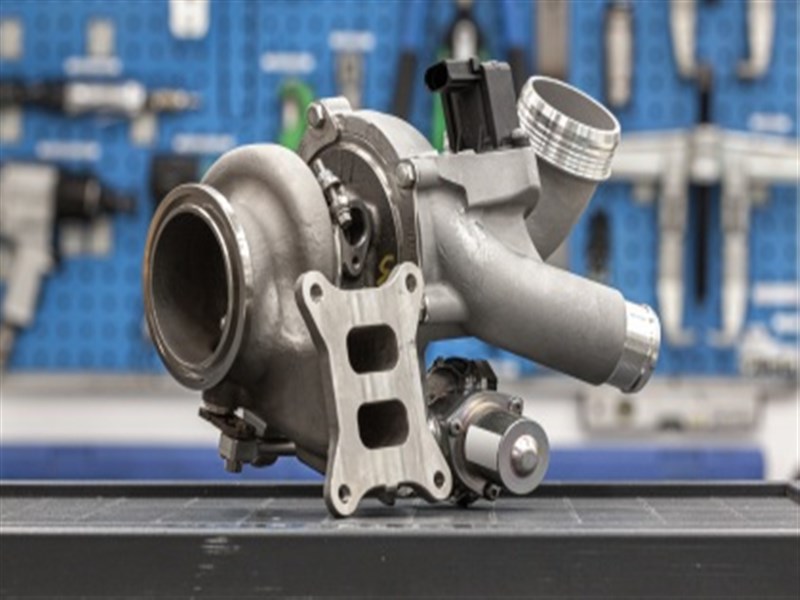

  Stage 2 in photo

Notes

Legal in California only for racing vehicles which may never be used, or registered or licensed for use, upon a highway. Installation may affect vehicle emissions, safety, warranty, and operating license. For details, contact your vehicle’s manufacturer or turbo kit distributor.
